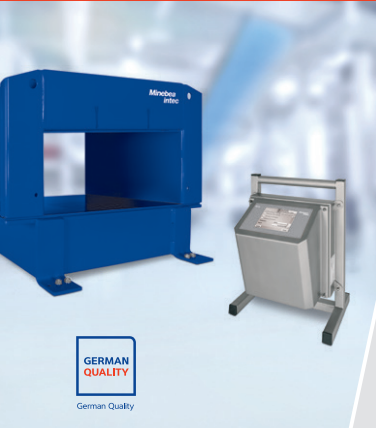

To ensure proper integration into your production process, Secus® is available in various designs :

• Secus®-C: The standard coil which ensures maximum sensitivity.

• Secus®-D: The divisible coil which can be installed around your conveyor belts without separating them. It can also be removed without affecting the conveyor belt.

• Secus®-U: The under-belt coil which is positioned beneath the conveyor belt.

‍

Secus® provides highly efficient and effective protection for your machines. It prevents metallic foreign bodies

from entering your production process and therefore keeps downtimes for repairs to a minimum.

Your employees are also reliably protected against injury from spalling metallic parts.

High-quality materials and an in-house production process marked with the quality seal “Made in Germany”

combine to achieve a product of unsurpassed quality.

Specially designed for heavy industry, it is the robust design and detection sensitivity that particularly stand out,

having been especially optimized for the extractive industry.

In order to ensure the highest levels of sensitivity and safety, Secus® provides a learning function for the moni-

tored product. This allows the system to adapt to changing ambient conditions by compensating for the product effect.

‍

Secus® enables up to four search coils to be operated via a single control unit (human interface) and allows

for centralized management of your quality assurance process. This process can also be implemented by

means of an electronic system that is separated from the search coil (max. 100 m). The task of monitoring the

quality of the product flow is therefore made easy, even in cases where the coils are difficult for the operator

to access. In addition, Secus® provides a range of data interfaces to ensure the easy integration of data into

your production system.

Secus® offers an intuitive user interface with integrated user management. Various password-protected user

authorizations can be assigned on request. The log function can be used to keep a record of every change to the

settings and assign each change to a user. This function, which Minebea Intec includes in its standard design,

guarantees you complete transparency of your production process at all times.

As an option, Secus® can be equipped with a reduced metal-free zone in order to rule out the possibility of

interference in the direct vicinity of the search coil resulting from upstream or downstream production processes.

‍

Benefits :

• Frequency range 5–50 kHz
• Highly developed electronics to compensate for the product effect
• 5.7-inch color touch screen display
• Robust design
• Easy integration into existing product lines
• Protection class IP55, IP66 optional
• Memory for 200 types of products
• “Made in Germany” quality

‍
