• Steel Linear Guide –
  The superior guidance system concept
  The steel / steel guide stands for lasting precision, durability and a long service life—featuring maintenance intervals of up to 30 million gripping cycles. Benefit from these features and increase the profitability and process reliability of your machine.
• Leakproof and corrosion protected – The universal gripper
  Suitable for virtually all ambient conditions, with a sealed guide up to IP67 and corrosion protection as standard, you are able to use this gripper universally. As a result, the range of models in your production is reduced, along with a reduction in associated storage and process costs.
• Aluminum Linear Guide – The alternative
  Reduced to those aspects which are the most important, the steel / aluminum guide variant offers significantly better performance when compared to a similar gripper with a T-groove travel guide, and is on par with the best principles of toothed guidance systems.

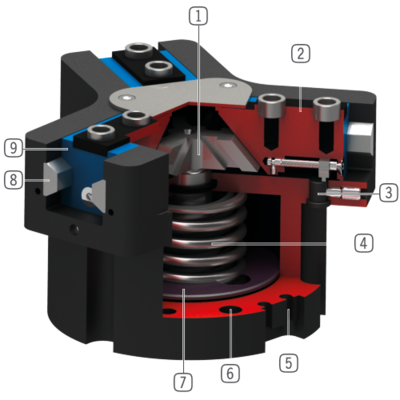

Benefits in detail

1. Wedge hook mechanism
   high forces and moments capacity Synchronized gripper jaw movement
2. Gripper jaw
   Gripper fingers mounted using removable centering sleeves Lubricated for life via incorporated lubrication slots
3. Mounting block
   mounting for inductive proximity switch
4. Integrated gripping force safety device
   Spring built into cylinder chamber as an energy store
5. Sensing slot
   mounting and positioning of magnetic field sensors
6. Mounting and positioning
   Alternatively, on several sides for customized mounting Pneumatic and electrical versions identical apart from height
7. Drive
   Double-acting pneumatic rotor cylinder
8. Steel Linear Guide
   Steel in steel guide Enables use of extremely long gripper fingers Also available in steel / aluminum variant
9. Dual lip seal
   IP64 and up to IP67 (with purged air) for Protector version Prevents grease from being squeezed out, increasing service life
